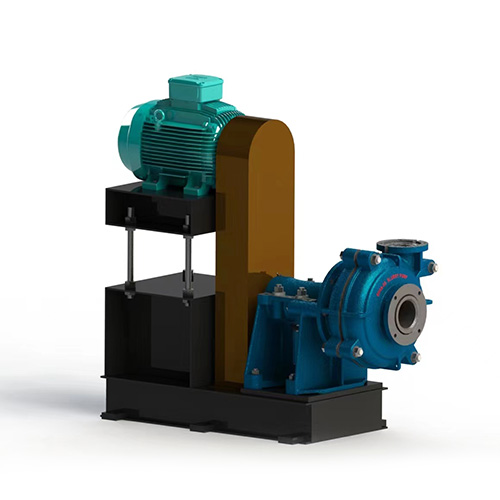

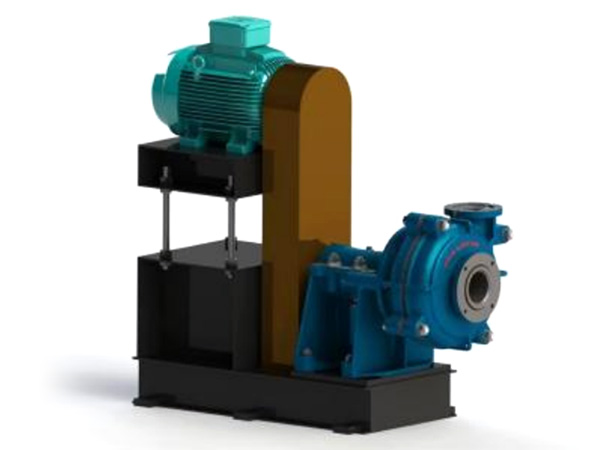

TZJ series ceramic slurry pump
TZJ type pump is a single stage single suction centrifugal slurry pump, the pump body with metal lining ceramic shell, suitable for conveying containing solid particles of corrosion resistance and abrasive slurry, the pump has high efficiency, stable operation, long service life characteristics; The flow parts of the pump are sintered ceramics of reaction-sintered silicon carbide, which are interchangeable with metal and rubber pumps.

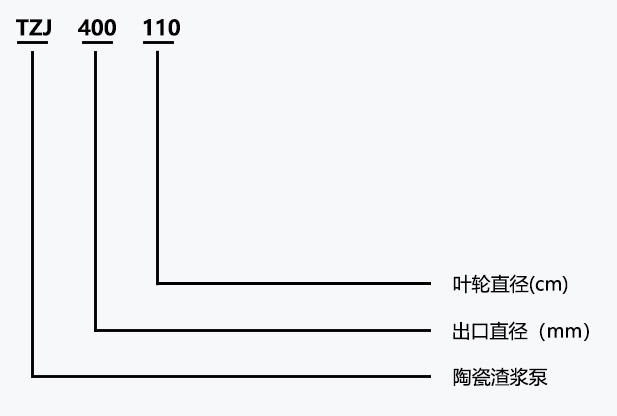

型号意义：
TZJ ceramic pump performance range
Q：17m3/h~2408m3/h
H：11m-138.5m
caliber：50mm-400mm
TZJ ceramic slurry pump structure characteristics
1, the pump head and the bracket are connected by bolts, and the pump outlet Angle can be rotated according to the need to achieve multi-level connection.
2, the flow parts are made of sintered ceramics of silicon ammonia combined with silicon carbide, which is suitable for the media with strong abrasive and large solid content.
3, the pump bracket is provided with adjusting bolts, by screwing the adjustment bolts installed on the bracket to drive the bearing box axial displacement to achieve impeller clearance adjustment, to ensure that the pump is always running at the efficient point.
4, bearing position design temperature measuring device, easy to field DCS control system data acquisition.
5. For the characteristics of abrasive and corrosive slurry, the mechanical seal adopts a spring external structure to avoid clogging; The structure of static ring compensation is adopted to adapt to the pump type with large axial diameter and high linear speed.
