ASP heavy duty ceramic slurry pump

ASP heavy duty ceramic slurry pump

ASP heavy duty ceramic slurry pump is suitable for electric power, metallurgy, coal, chemical, building materials and other industries, conveying abrasive or corrosive slurry containing solid particles, such as power plant ash and slag conveying, coal conveying, metallurgical mineral slurry litigation, coal washing plant slurry and heavy medium conveying. The maximum weight concentration of the solid liquid mixture is 45% for mortar and 60% for pulp. The pump has high efficiency, stable operation, high reliability and long service life. This type of pump can be used in multiple stages.

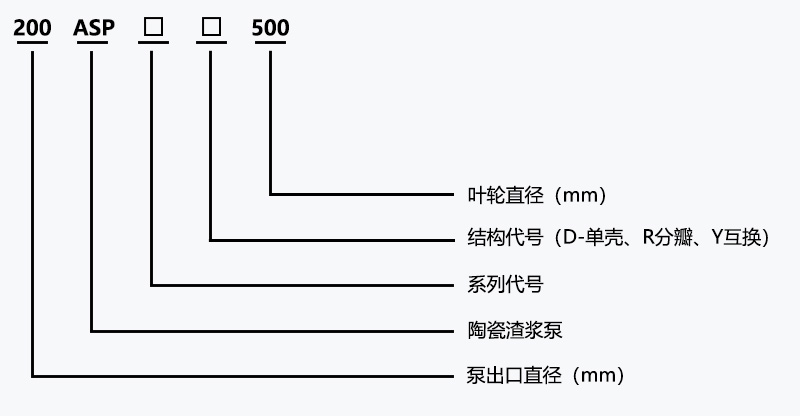

Model meaning:

Heavy-duty ceramic slurry pump performance range

Q:2m3/h~2800m3/h

H:5m-124m

caliber:25mm-450mm

Structural characteristics of heavy duty ceramic slurry pump

1 The pump head and bracket are connected by bolts, and the pump outlet Angle can be rotated according to the need to achieve multi-level connection.

2 The flow parts are made of sintered ceramics of silicon ammonia combined with silicon carbide, which is suitable for the media with strong abrasive and large solid content.

3 The pump bracket is provided with adjusting bolts. By screwing the adjusting bolts installed on the bracket, the bearing box is driven by axial displacement to achieve impeller clearance adjustment and ensure that the pump is always running at the efficient point.

4 bearing position design temperature measuring device, easy to field DCS control system data acquisition.

5 For the characteristics of abrasive and corrosive slurry, the mechanical seal adopts a spring external structure to avoid clogging; The structure of static ring compensation is adopted to adapt to the pump type with large axial diameter and high linear speed.
