SPT ceramic pump
SPT series vertical ceramic pump is a vertical centrifugal slurry pump, which is used to transport abrasive, coarse particles and high concentration slurry under immersion. It does not require any shaft seal and shaft seal water, and can work normally under the condition of insufficient intake. SPT series liquid pump flow parts are made of silicon carbide (SPT) ceramic, good wear resistance and corrosion resistance, long service life.

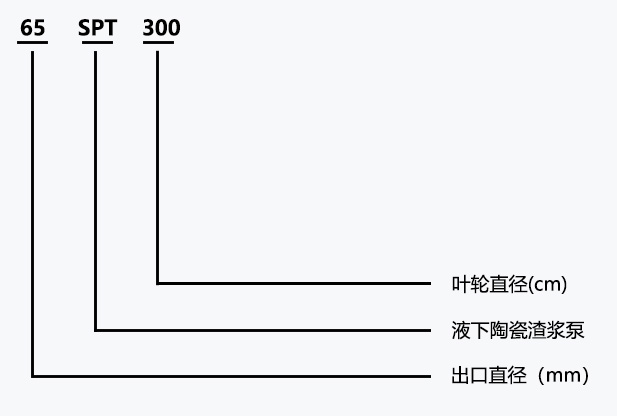

Model meaning:
SPT vertical ceramic pump performance range
Q:5m3/h~1089m3/h
H:2m-45m
caliber:40mm-300mm
SPT vertical ceramic pump structure characteristics
1. Adopt vertical cantilever structure.
2, the silicon carbide ceramic impeller, with a disassembly ring, easy to disassemble the impeller.
3, the flow parts are made of ceramic materials, excellent wear resistance, improve the overall service life of the pump.
4, simple bearing components, high capacity bearing design, bearing grease lubrication.
5. The gap between the impeller and the protection plate can be adjusted to ensure the efficient operation of the pump.
6, no need for any shaft seal.
7, pump and drive machine can choose direct transmission, triangle belt transmission.
