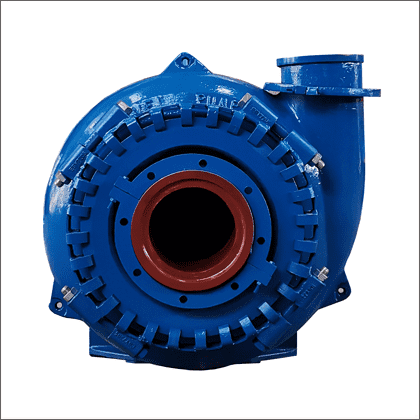

Sand Dredging Pump Model: SG/150E (8/6E-G) Sand Dredging Pump SG series have been designed to increase the pumpability of frothy slurry. The principle of operation is similar to that of hydrocyclone separation. Vertical Tank Froth Pumps are supplied with parts in wear resistant high chrome iron alloy, with a nominal hardness of 58-65HRC. The Sand Dredging Pumps are ideal for all applications involving handling of air entrained slurries, such as flotation froth in base metal concentrators, pho...


  • Sand Pumps :River Dredging Pumps


Send Inquiry
Description

Sand Dredging Pump

Sand Dredging Pump SG series have been designed to increase the pumpability of frothy slurry. The principle of operation is similar to that of hydrocyclone separation.

Vertical Tank Froth Pumps are supplied with parts in wear resistant high chrome iron alloy, with a nominal hardness of 58-65HRC.

The Sand Dredging Pumps are ideal for all applications involving handling of air entrained slurries, such as flotation froth in base metal concentrators, phosphate and apatite washing plants and calcium carbonate upgrading plants. The pump can also be used as a mixing and distribution unit, where dry powder has to be mixed with water.

Material Construction:

DescriptionStandard MaterialOptional Material
ImpellerA05
DoorA05
BowlA05
Front CoverA05
Back LinerA05
ShaftCarbon Steel K1045SUS304, SUS316(L)
Shaft Sleeve3Cr13SUS304, SUS316(L)
Shaft SealGland Packing SealExpeller Seal, Mechanical Seal

Application of Sand Dredging Pumps:

Sand and Gravel, Hydraulic Mining, Sugar Beet & Other Root Vegetables, Slag Granulation; Tunnelling.

Specifications:

Pump
Model

S×D
(inch)

Allowable
Max. Power
(kw)

Clear Water Performance

Impeller

Capacity  Q

Head
H(m)

Speed
n(r/min)

Max.Eff.
η%

NPSH
(m)

No. of
Vanes

Vane Dia.
(mm)

m3/h

SG/100D

6×4

60

36-250

5-52

600-1400

58

2.5-3.5

3

378

SG/150E

8×6

120

126-576

6-45

800-1400

60

3-4.5

391

SG/200F

10×8

260

216-936

8-52

500-1000

65

3-7.5

533

SG/250G

12×10

600

360-1440

10-60

400-850

65

1.5-4.5

667

SG/300G

14×12

600

432-3168

10-64

300-700

68

2-8

864

SG/400T

18×16

1200

720-3600

10-50

250-500

72

3-6

1067

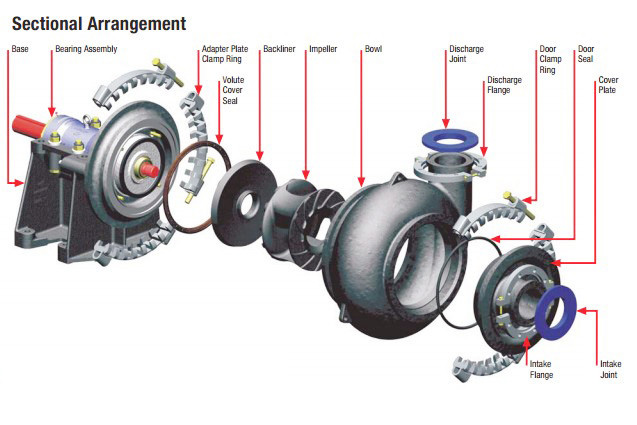

Structure:

SG (2)

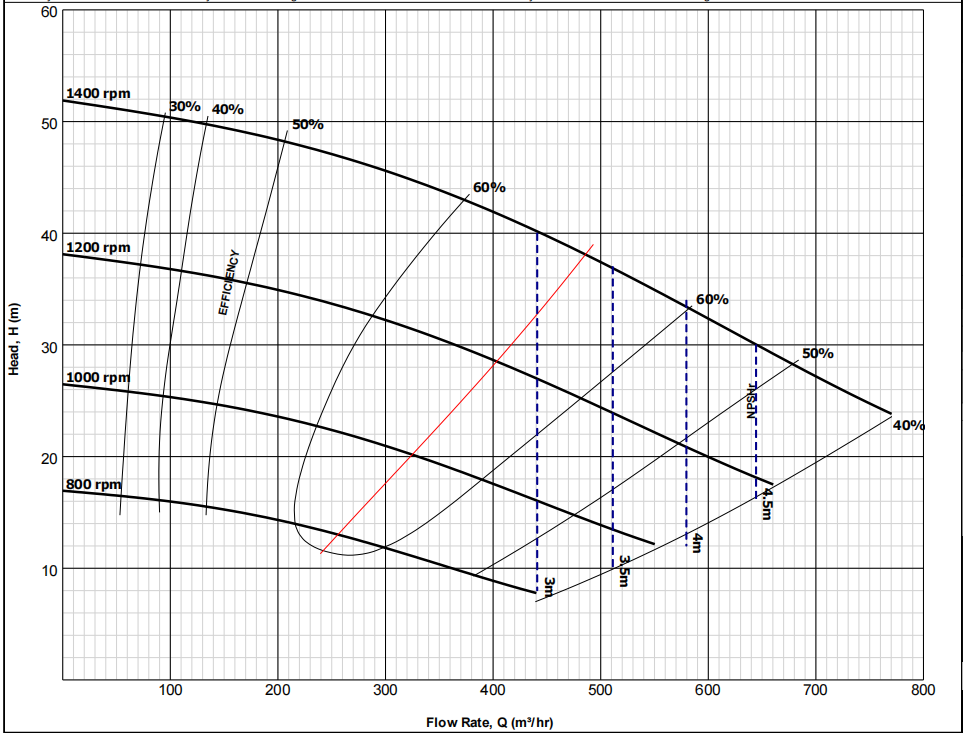

Performance Curve:

Warman Curve
