Horizontal Rubber Lined Slurry Pump

Horizontal Rubber Lined Slurry Pump

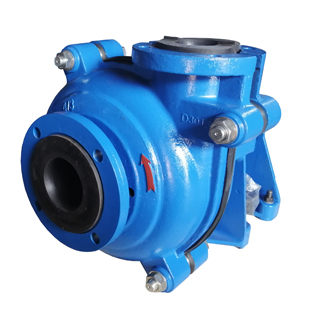

Pump Model: SHR/75C (3/4C-AHR) SHR/75C is equivalent to 4/3C-AHR, a 3” discharge rubber lined slurry pump, which is widely used for corrosive slurry applications. SHR/75C is a relatively smaller pump model among our horizontal centrifugal type heavy duty rubber lined slurry pumps. It is used to handle tailings in various mining sectors. Plus, it can also be used to feed cyclones for sand washing plants, quarries, etc. SHR is high corrosion-resistant pump series for the hydraulic convey...

Send Inquiry
Description

SHR/75C is equivalent to 4/3C-AHR, a 3” discharge rubber lined slurry pump, which is widely used for corrosive slurry applications. SHR/75C is a relatively smaller pump model among our horizontal centrifugal type heavy duty rubber lined slurry pumps. It is used to handle tailings in various mining sectors. Plus, it can also be used to feed cyclones for sand washing plants, quarries, etc. SHR is high corrosion-resistant pump series for the hydraulic conveyance of liquids-solids of any type. It’s wet-end spare parts are made of natural rubber R55, a black soft natural rubber, which has superior erosion resistance to all other materials in fine particle slurry applications. The high erosion resistance of R55 is provided by the combination of its high resilience, high tensile strength and low Shore Hardness.

Rubber pumps can also be used for applications where metal pumps are widely used, when the pH is 5-8. But they are more often used to handle fine articles with small solids.

Applications:

Mining Sectors; Food Process; Municiple Water; Midlings Disposal; Oil and Gas; Waste Water Transfer etc.

Material Construction:

Part DescriptionStandardAlternative
ImpellerR55Polyurethane
Cover Plate Liner
R55Polyurethane
Frame Plate Liner
R55Polyurethane
ThroatbushR55Polyurethane
Split Outter CasingsGrey IronDuctile Iron
ShaftCarbon SteelSS304, SS316
Shaft SleeveSS304SS316, Ceramic, Tungstan Carbide
Shaft SealExpeller SealGland Packing, Mechanical Seal
BearingsZWZ, HRBSKF, Timken, NSK etc.

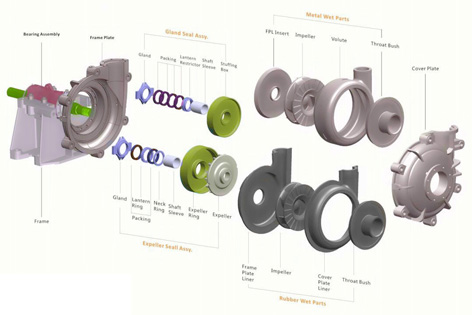

Construction & Structure:

AH and AHR

Specifications:

Flowrate: 79-180m3/hr; Head: 5-34.5m; Speed: 800-1800rpm; Bearing Assembly: CAM005M

(Optional Bearing Assembly: D005M, CCAM005M)

Impeller: 5-Vane Closed Type with Vane Diameter: 245mm; Max. Passage Size: 28mm; Max. Efficiency: 59%

4-3C-AH
