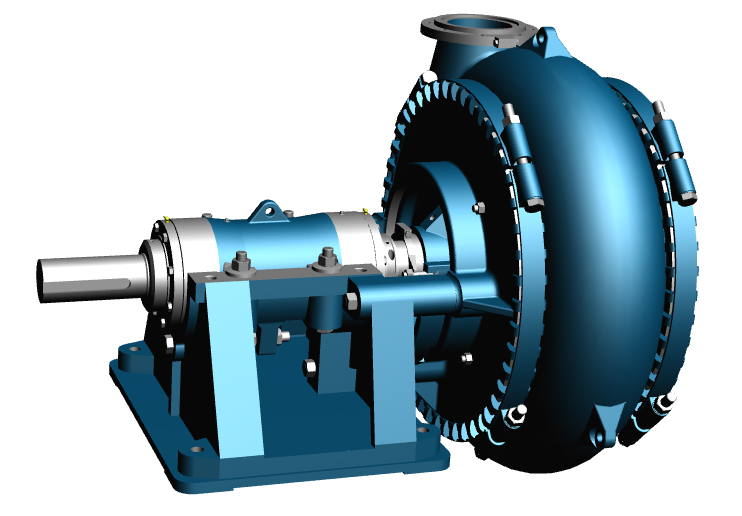

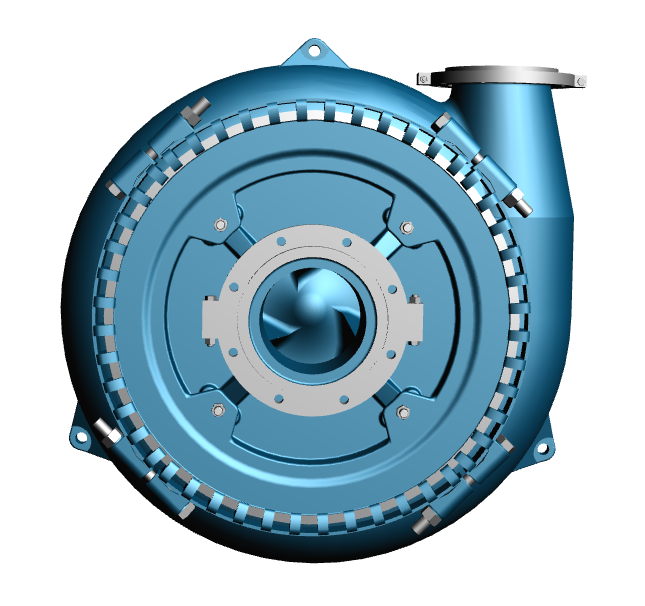

Gravel Pumps 200S

Gravel Pumps 200S

Pump

Discharge

203mm

Suction

254mm

Impeller

Vanes

3

Vane ø

686mm

Type

Closed

Part No

Material

FGH8137

Metal

Frame (Rating - KW)

F

260

FF

425

FFX

425

S

560

SX

560

Seal

Gland Sealed Pump

Liner (Norm Max r/min)

Unlined

950

Min Passage Size

180mm

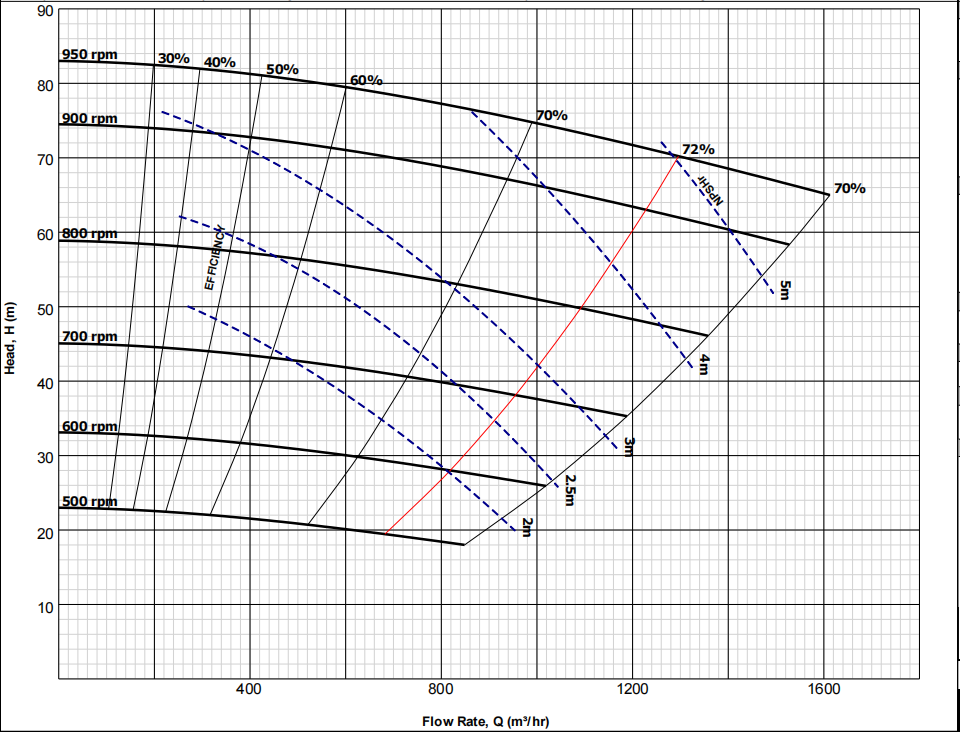

Curve

Revision

1

Revision Notes

SPHERE NOTE CHANGED. GENERAL NOTES REVISED.

Reference

TEST 1:A4-P-615, 616

Issued

Jun 85


Send Inquiry
Description

CURVE SHOWS APPROXIMATE PERFORMANCE FOR CLEAR WATER (International Test Standard ISO9906:1999 - Grade 2 unless otherwise specified).  For media other than water, corrections must be made for density, viscosity and/or other effects of solids.  WEIR MINERALS reserves the right to change pump performance and/or delete impellers without notice.  Frame suitability must be checked for each duty and drive arrangement.  Not all frame alternatives are necessarily available from each manufacturing centre.
